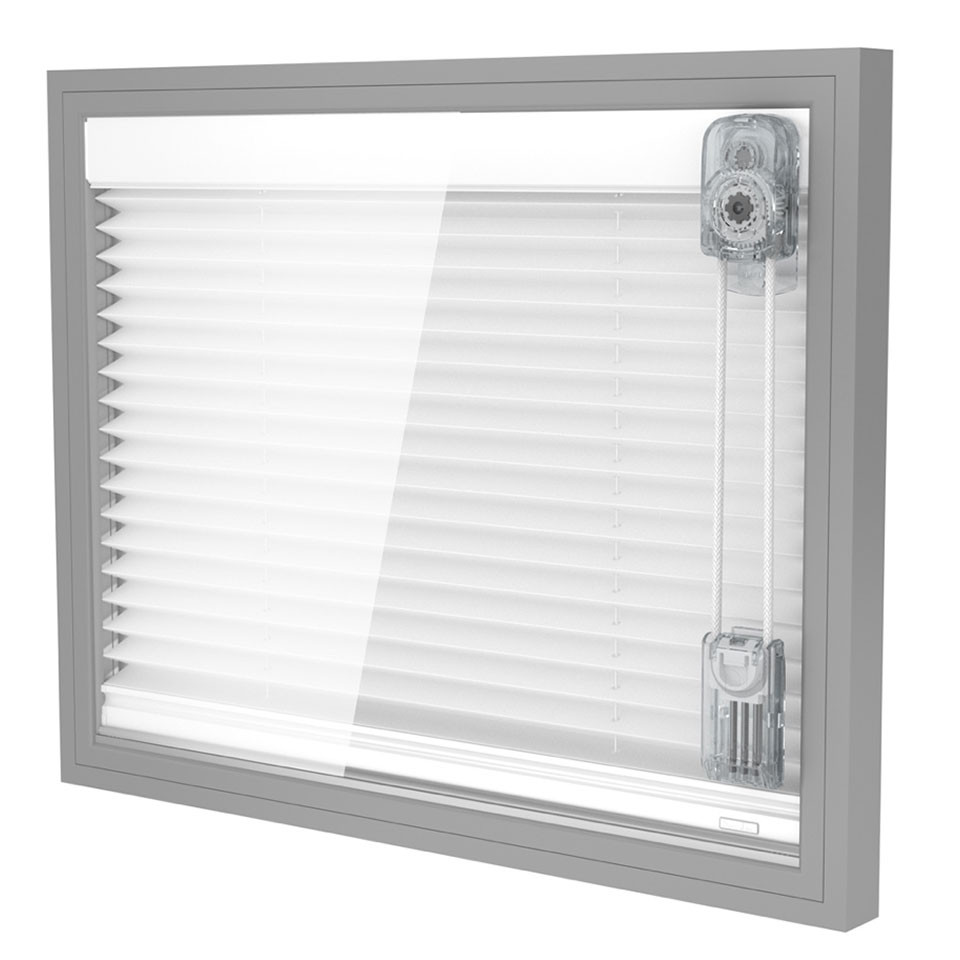

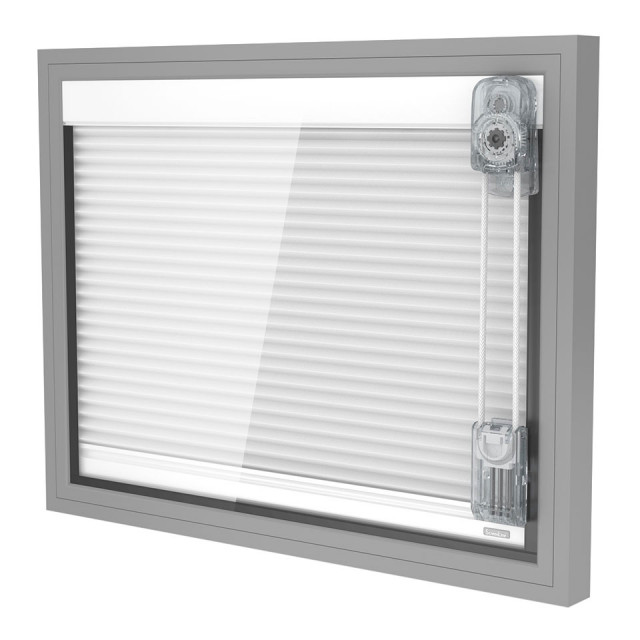

The ScreenLine® blind SL27-29-32C Pleated for incorporation within insulating glass is manufactured in accordance with high technical specifications and production standards. The blind operation is achieved using a rotational magnetic transmission through the glass thereby guaranteeing the unit‘s hermetic seal. The external magnet, fixed to the internal glass by double sided high-performance adhesive tape allows perfect alignment with the internal magnet.
The blind is raised and lowered using a continuous cord loop that drives the external magnet. The cord is held lightly under tension by a cord tensioner on the glass directly below the external magnet. A dedicated mechanical end stop inside the head rail ensures a safe stop of the blind in the bottom position.
SL27-32C ensures with time the insulating properties of the double or triple glazing unit, notably protection from dirt or weather conditions. The integrated unit can be fitted into the window frame like standard insulating glass.
System SL29C Pleated is supplied with warm edge spacer bars as standard.
