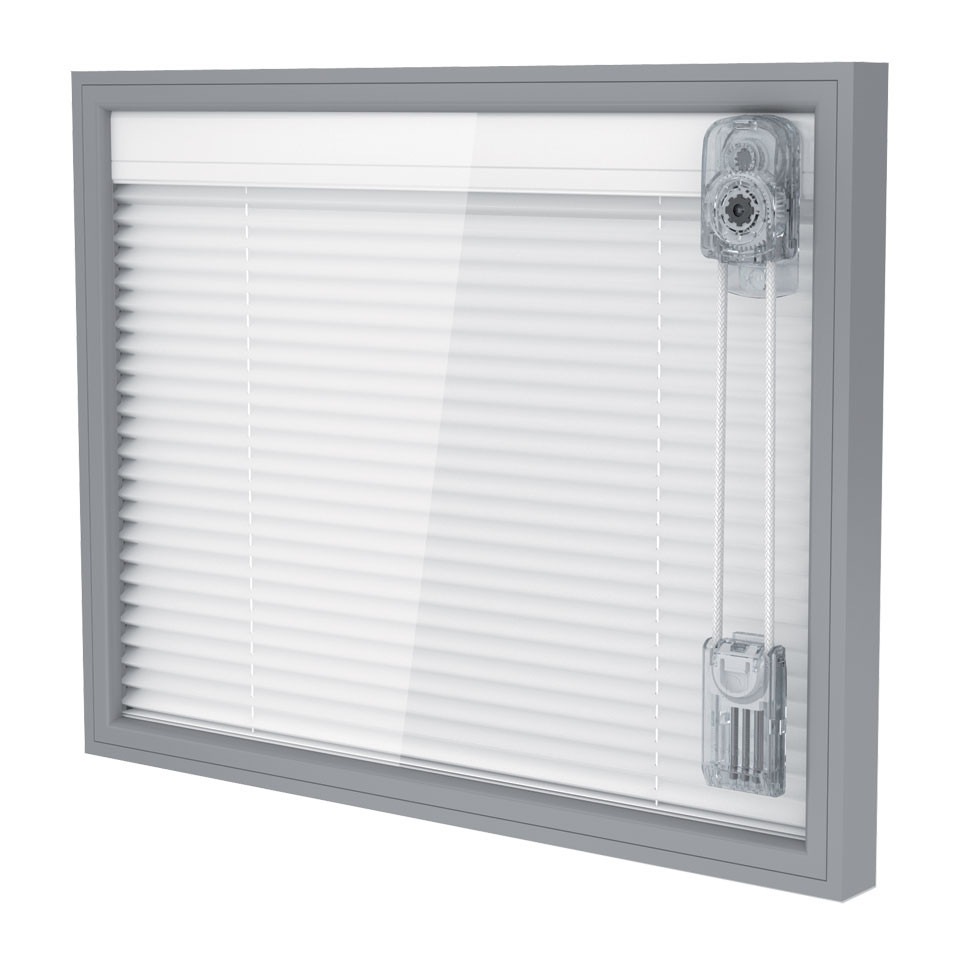

ScreenLine® SL20-22C Pleated is a patented magnetic system with manual operation (raising function) for pleated blinds incorporated within 20-mm or 22-mm double or triple glazing units and featuring Verosol® fabrics, which are coated with an aluminium layer on one side.
The external magnetic device applied on the glass by means of high-resistance adhesive tape contains a cord loop and a magnet that is perfectly interfaced with the magnetic joint of the internal drive, which is completely housed inside the head rail. The movement provided to the cord enables the rotation of the magnets that activate the blind. The cord is kept under tension by means of a special cord tensioner applied on the glass.
SL20-22C Pleated is particularly suited to structural façades, although there are actually no limits to its application.
SL20-22C Pleated ensures with time the insulating properties of the double or triple glazing unit, notably protection from dirt or weather conditions. The integrated unit can be fitted into the window frame like standard insulating glass. The system is supplied with warm edge spacer bars as standard.
